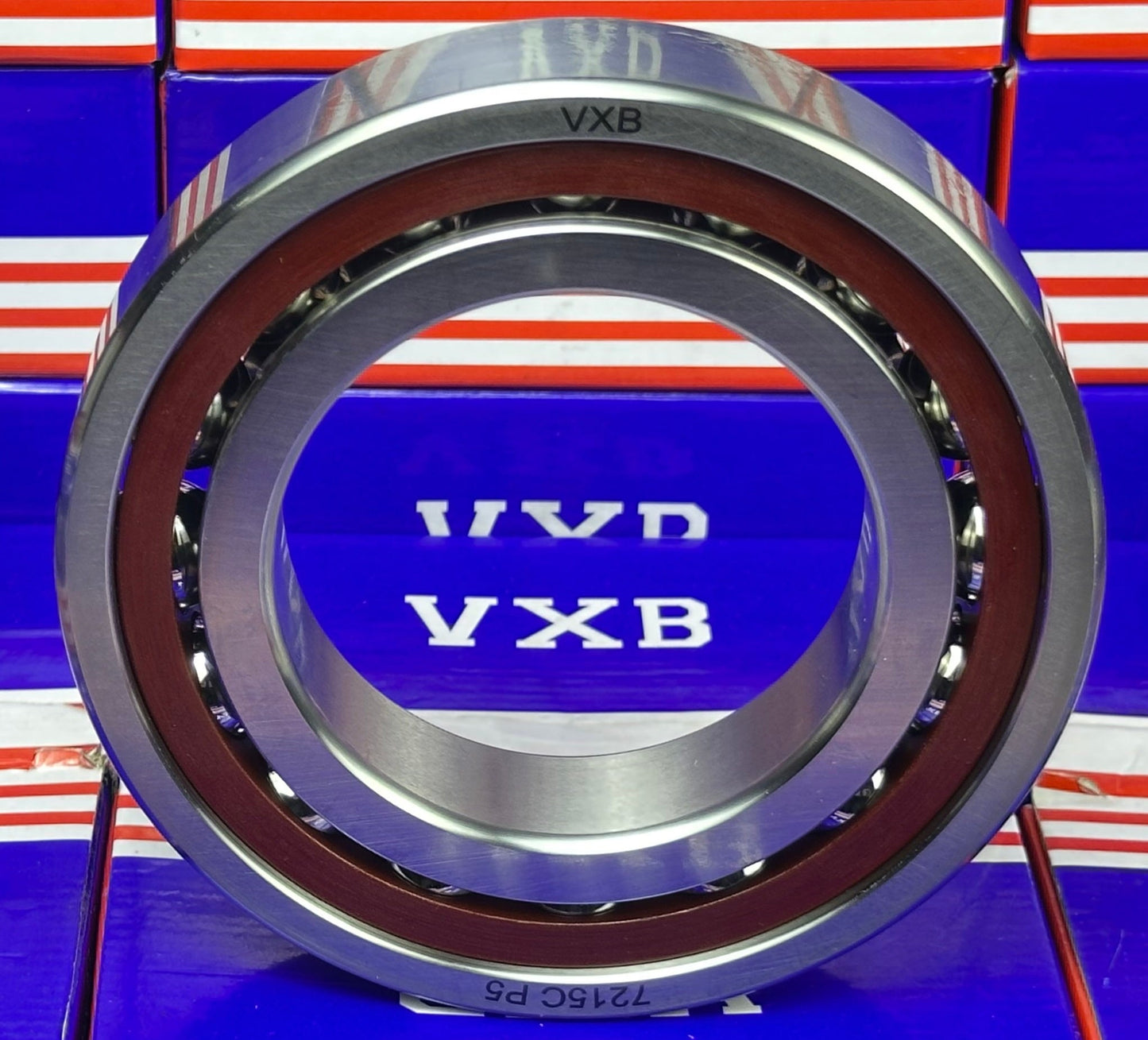

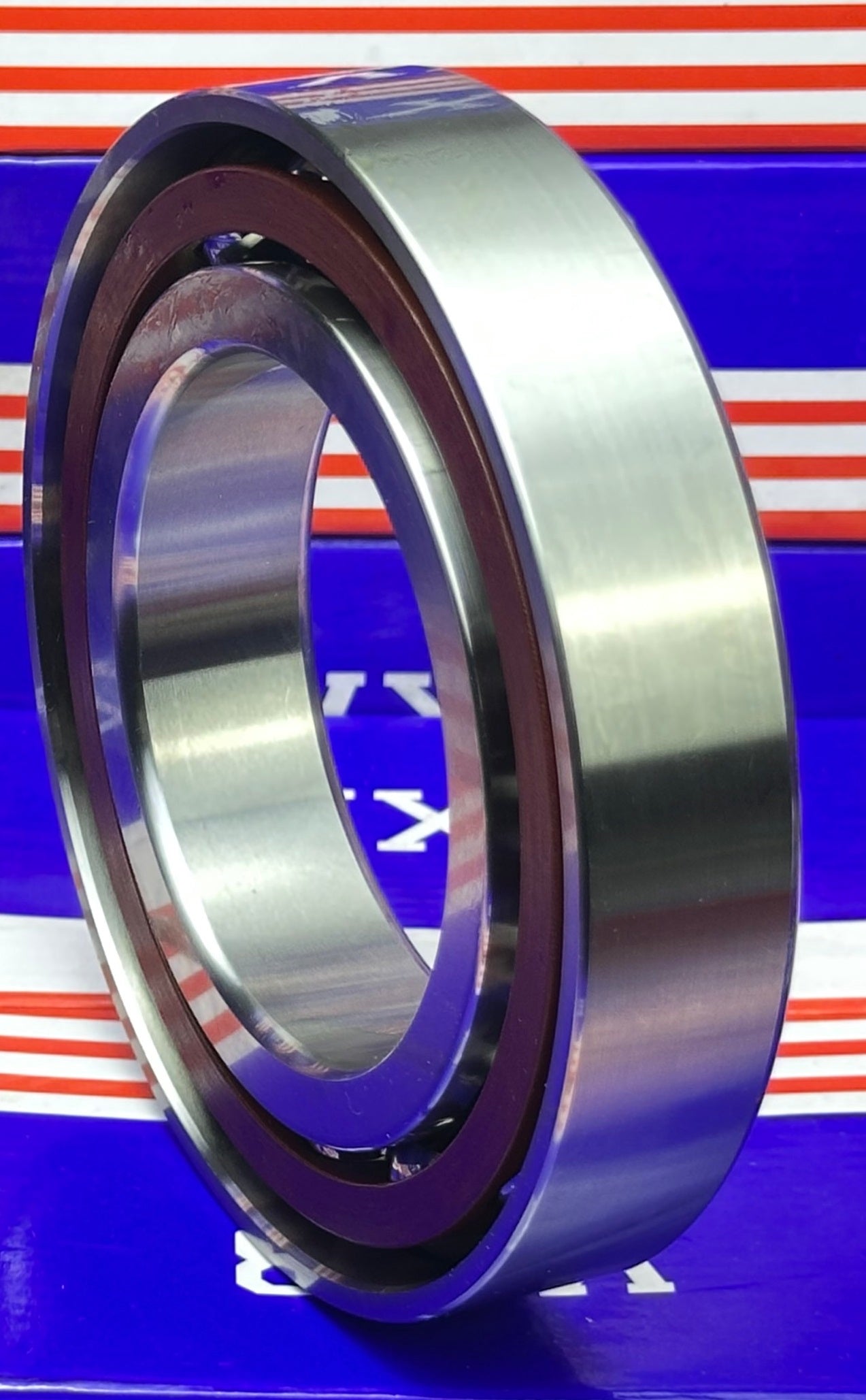

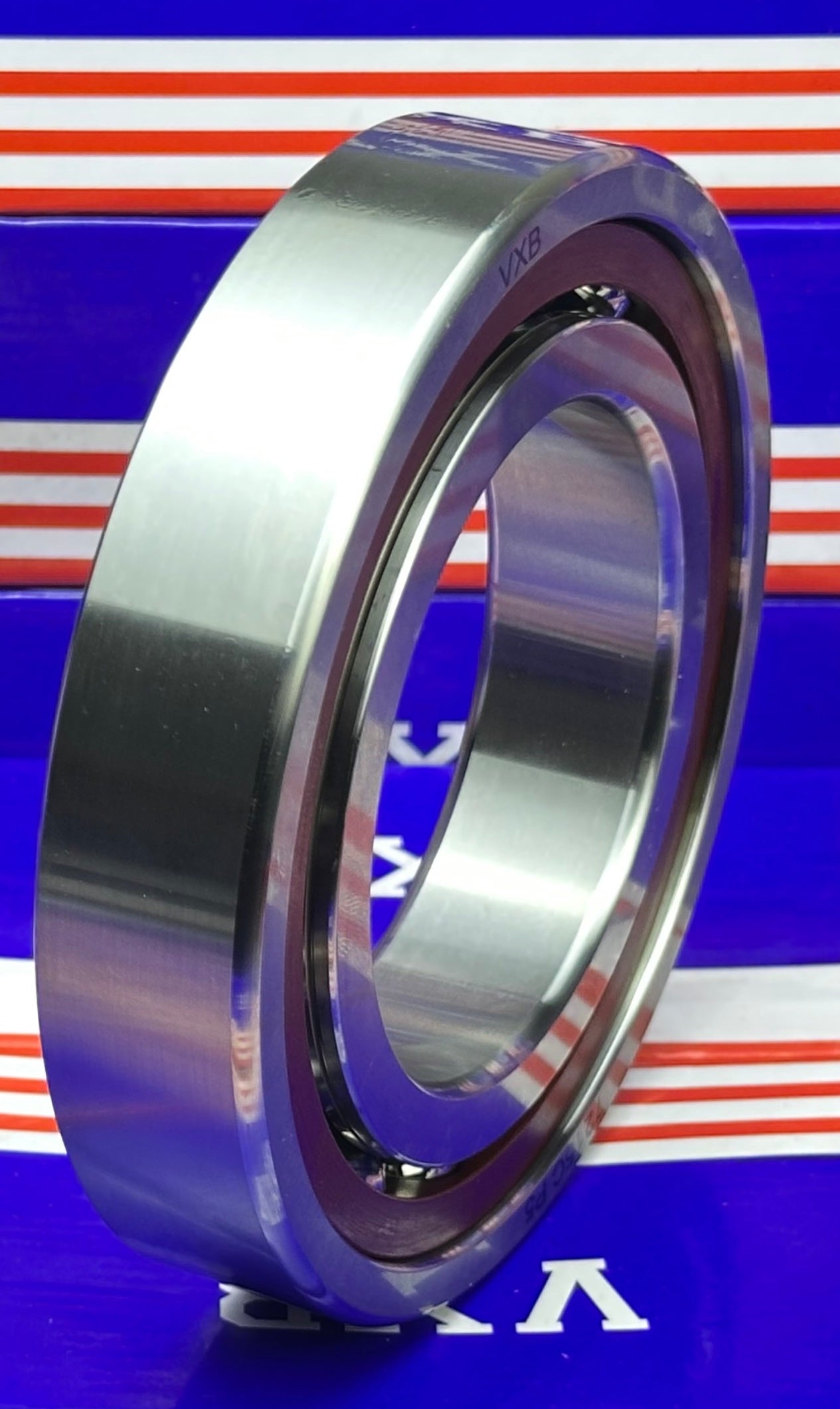

7215C P5 high precision Angular Ball Bearing with 15 degrees contact angle and Polyamide resin cage, bearing is ABEC-5 (P5) quality.
- 7215C P5 Ball Bearing
- Angular Ball Bearing
- Cage: Polyamide resin cage
- Quality: ABEC-5 (P5 quality)
- Dimensions: 75mm x 130mm x 25mm/Metric
- ID (inner diameter)/Bore: 75mm
- OD (outer diameter): 130mm
- Width: 25mm
- Size: 75 x 130 x 25 mm
- Quantity: 1 Bearing
- Dynamic load rating Cr: 83,500 N
- Static load rating Cor: 70,000 N
- Limiting Speed:
- Grease Lubrication: 7,800 RPM
- Oil Lubrication: 11,000 RPM

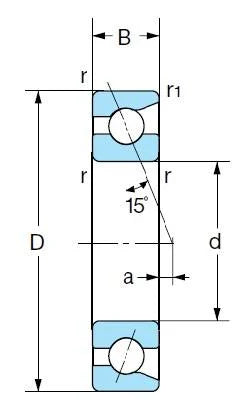

| Dimensions |
|---|
| d |
D |
B |
r |
r1 |
a |
| 75mm |
130mm |
25mm |
1.5mm |
1mm |
-0.7mm |
|
