VA060XPO Thin Section Bearing ID 6" OD 6-1/2" Width 1/4"
VA060XPO Thin Section Bearing ID 6" OD 6-1/2" Width 1/4"
Couldn't load pickup availability

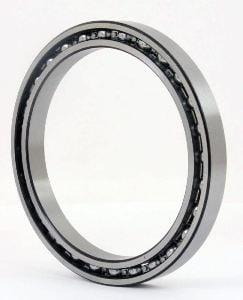

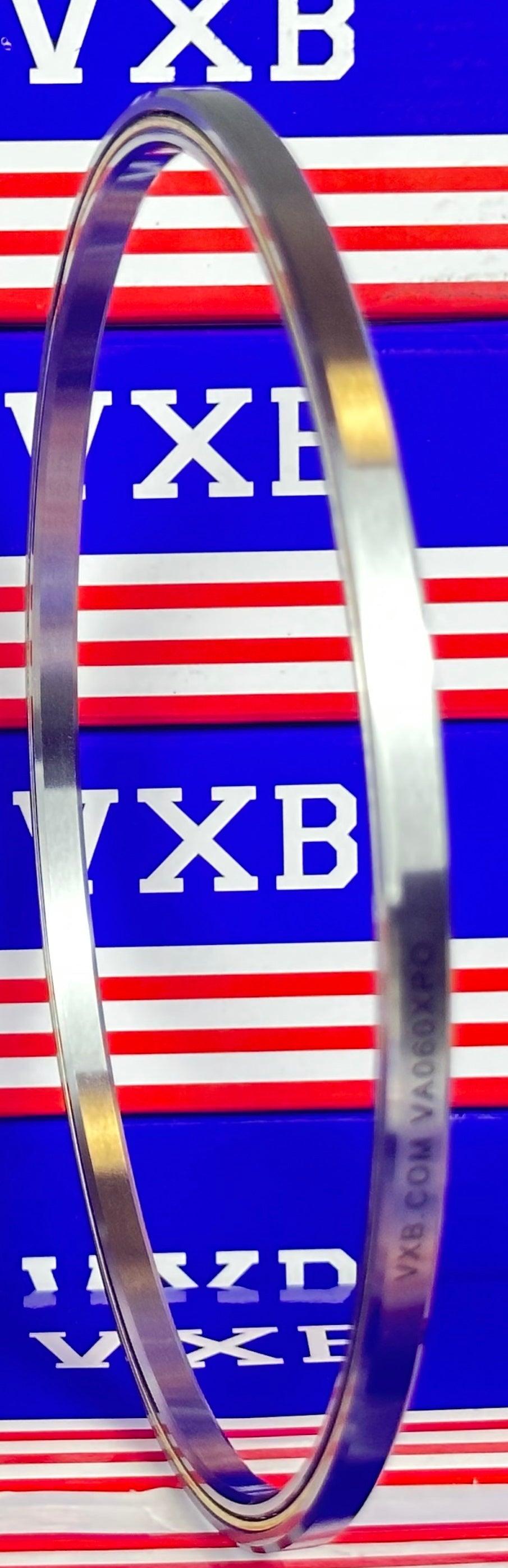

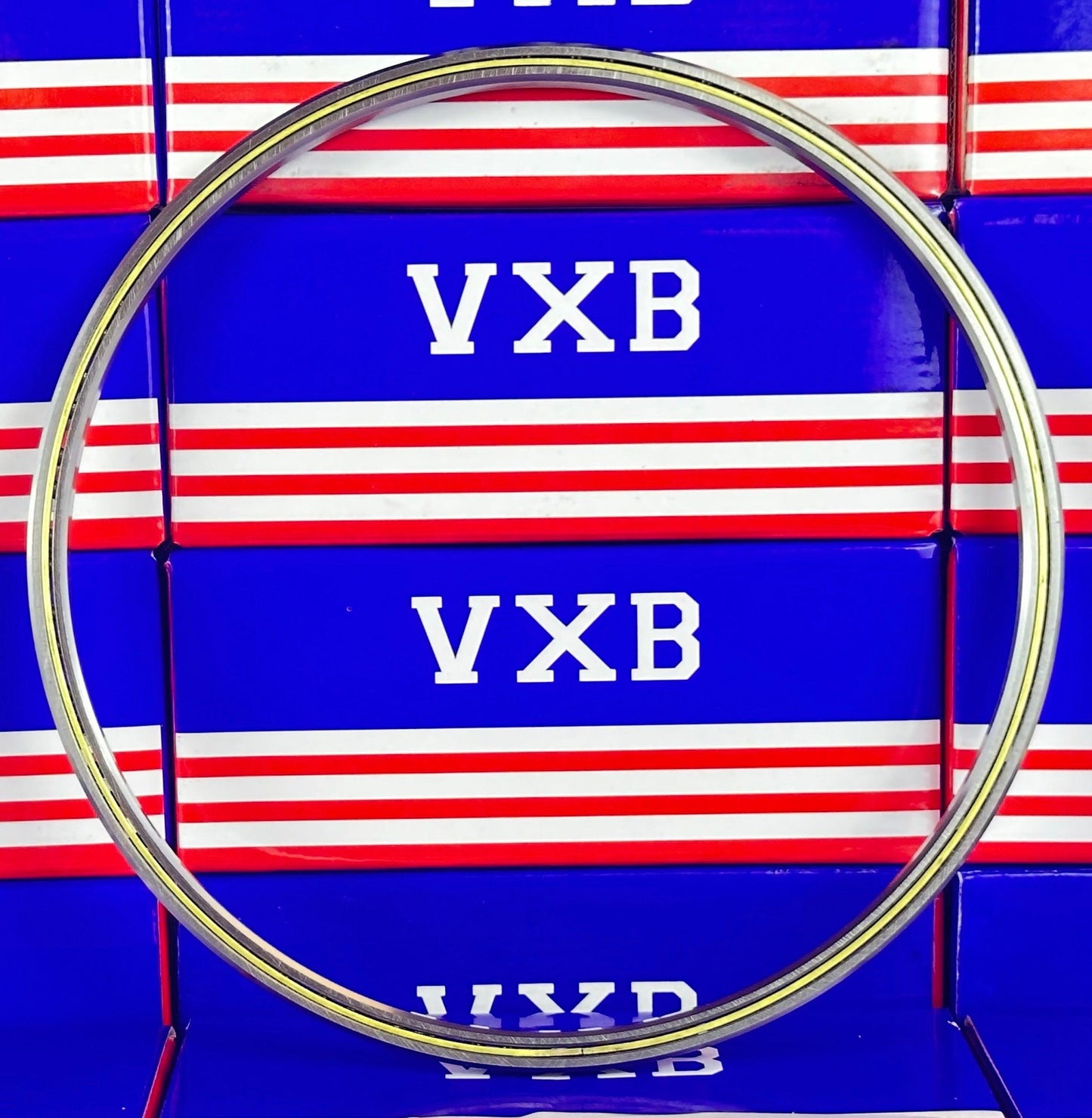

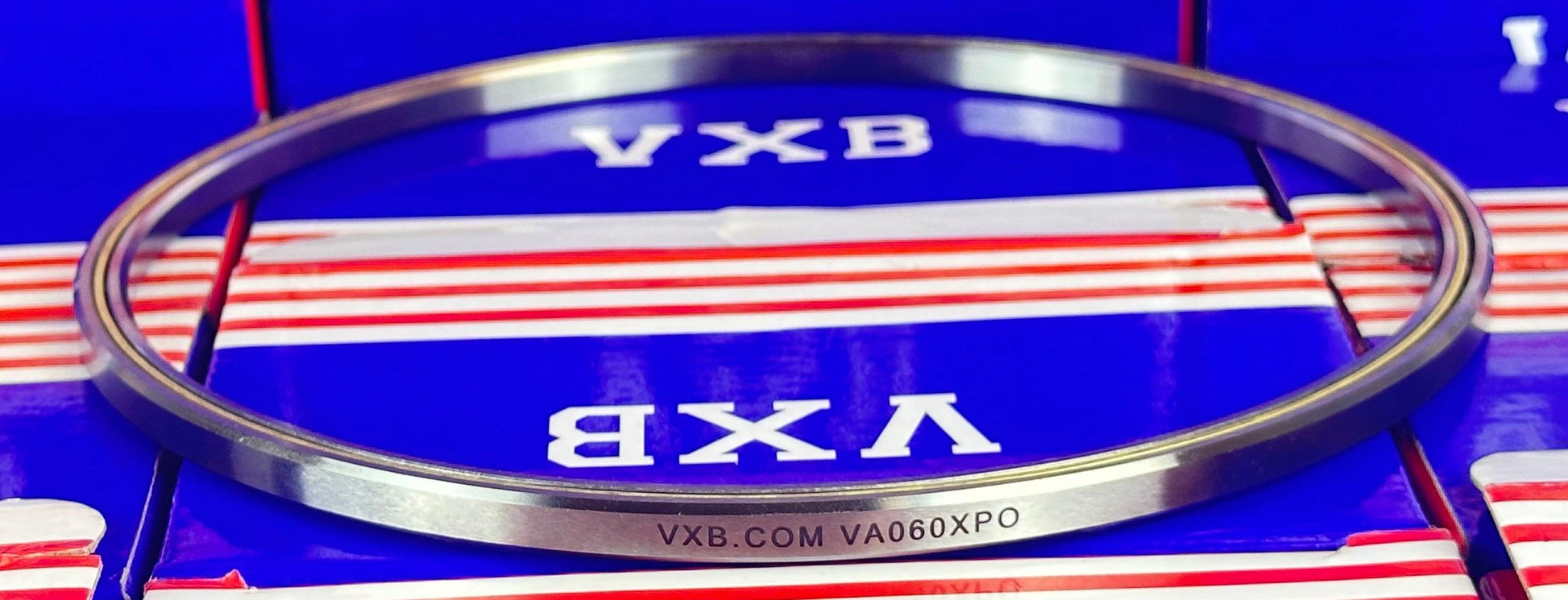

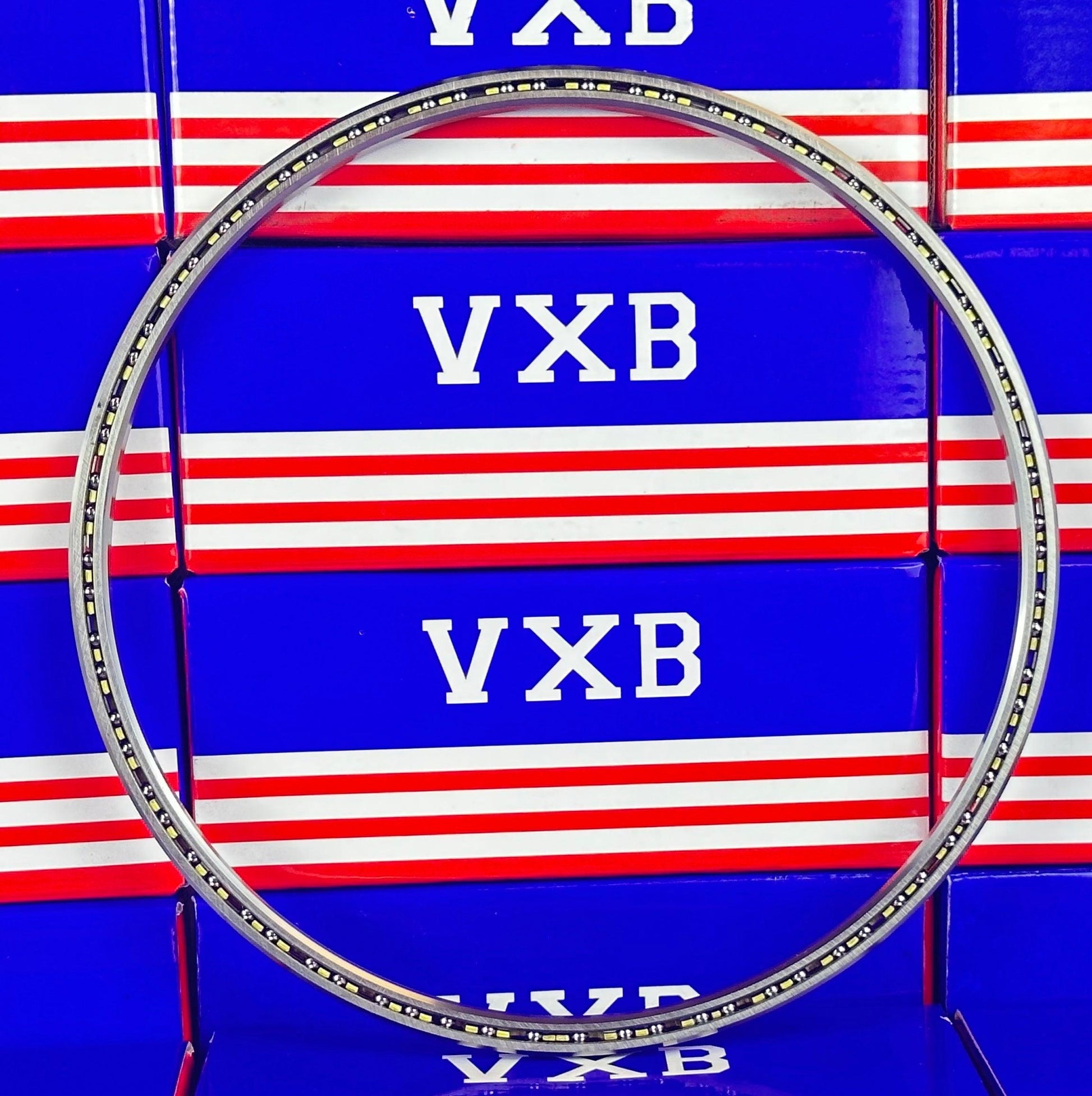

VA060XPO Slim Type Bearing - X-Type, Four-Point Contact
✔️ 6" x 6.5" x 0.25" - Open Bearing with Brass Cage, Slim Profile
The VA060XPO is a four-point contact slim-section bearing (X-type) designed to handle radial, axial, and moment loads in a single compact unit. With a 1/4" cross-section and brass cage for durability and smooth movement, this open-style bearing is ideal for robotic arms, rotating tables, and precision automation equipment requiring high load versatility in limited space.
✅ Size: 6" ID x 6.5" OD x 0.25" width
✅ Type: Four-point contact (X-type) thin-section bearing
✅ Material: Chrome steel
✅ Cage: Brass
✅ Enclosure: Open (non-sealed)
✅ Dynamic Load Rating: 2.945 kN
✅ Static Load Rating: 9.764 kN
✅ Quantity: 1 bearing
✅ Brand: VXB
💡 Why go with X-type slim bearings?
X-type bearings (four-point contact) handle radial, axial, and moment loads at once - making them the most handy thin-section design for dynamic, multidirectional systems.
Great for applications requiring compact strength across all load directions.
🔍 Comparison Table: VA060XPO vs. VA060CP0 vs. VB060CP0
| Feature | VA060XPO (X-Type) | VA060CP0 (C-Type) | VB060CP0 (B-Type) |
|---|---|---|---|
| Inner Diameter | 6" | 6" | 6" |
| Outer Diameter | 6.5" | 6.5" | 6.625" |
| Width | 0.25" | 0.25" | 0.3125" (5/16") |
| Contact Type | Four-point contact | Deep groove (radial) | Angular contact (axial priority) |
| Load Support | Radial + axial + moment | Primarily radial | Axial (in one direction) |
| Dynamic Load Rating | 2.945 kN | 4.702 kN | 3.668 kN |
| Static Load Rating | 9.764 kN | 15.421 kN | 12.259 kN |
| Enclosure | Open | Open | Open |
| Cage Material | Brass | Brass | Brass |
| Ideal Use | Multidirectional compact loads | High radial loads | Precise axial loads in one direction |
🔧 Which should you choose?
