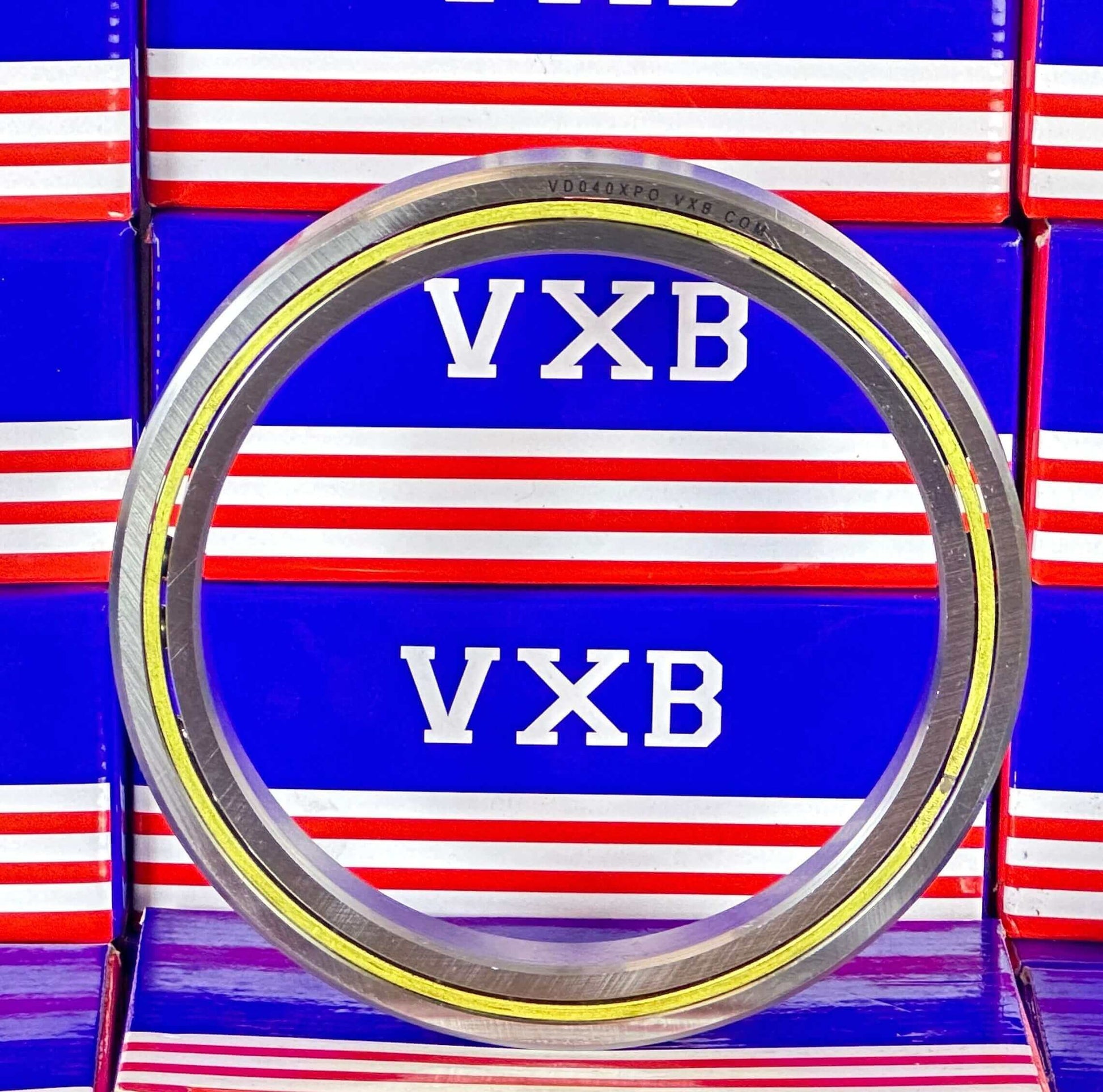

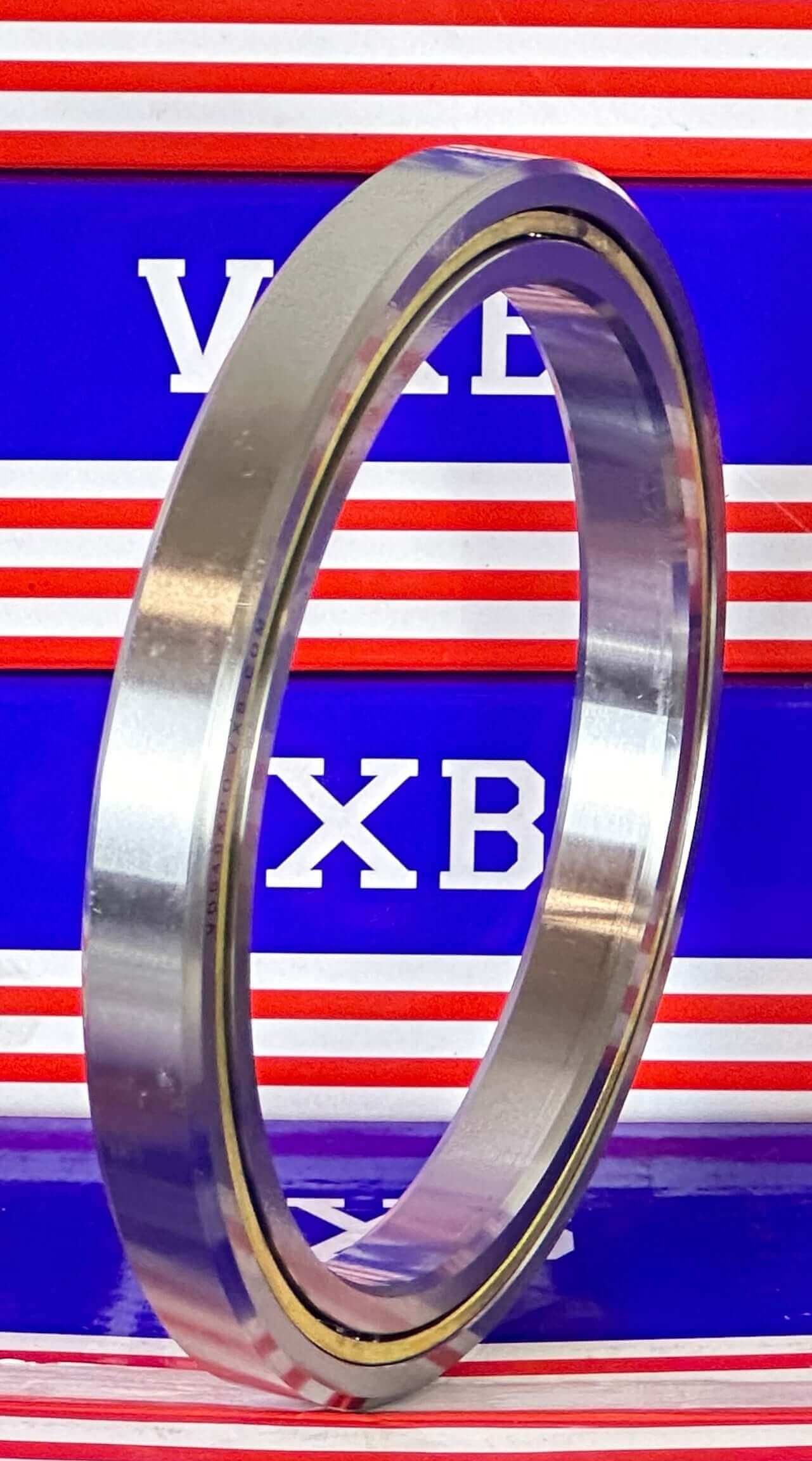

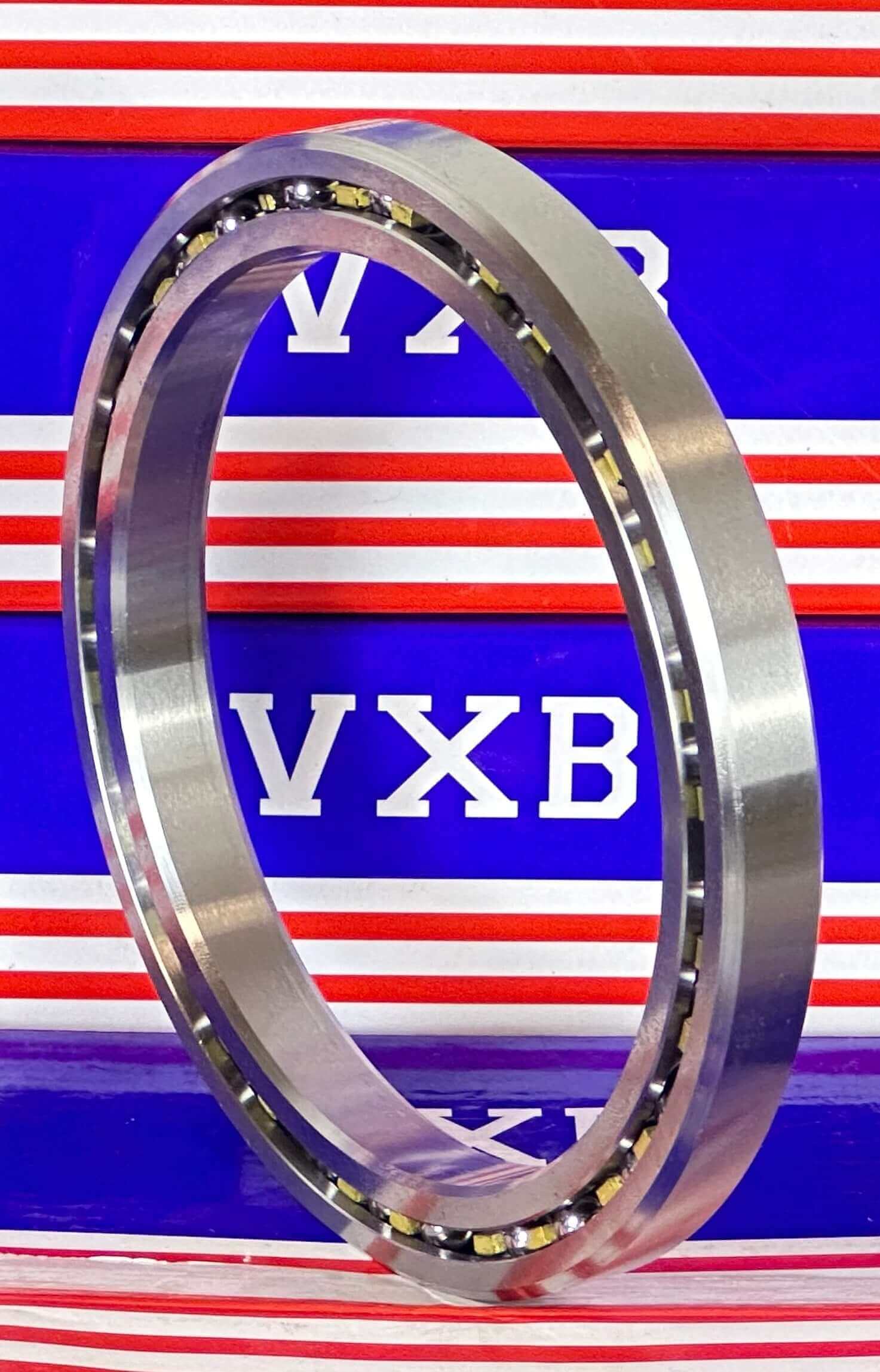

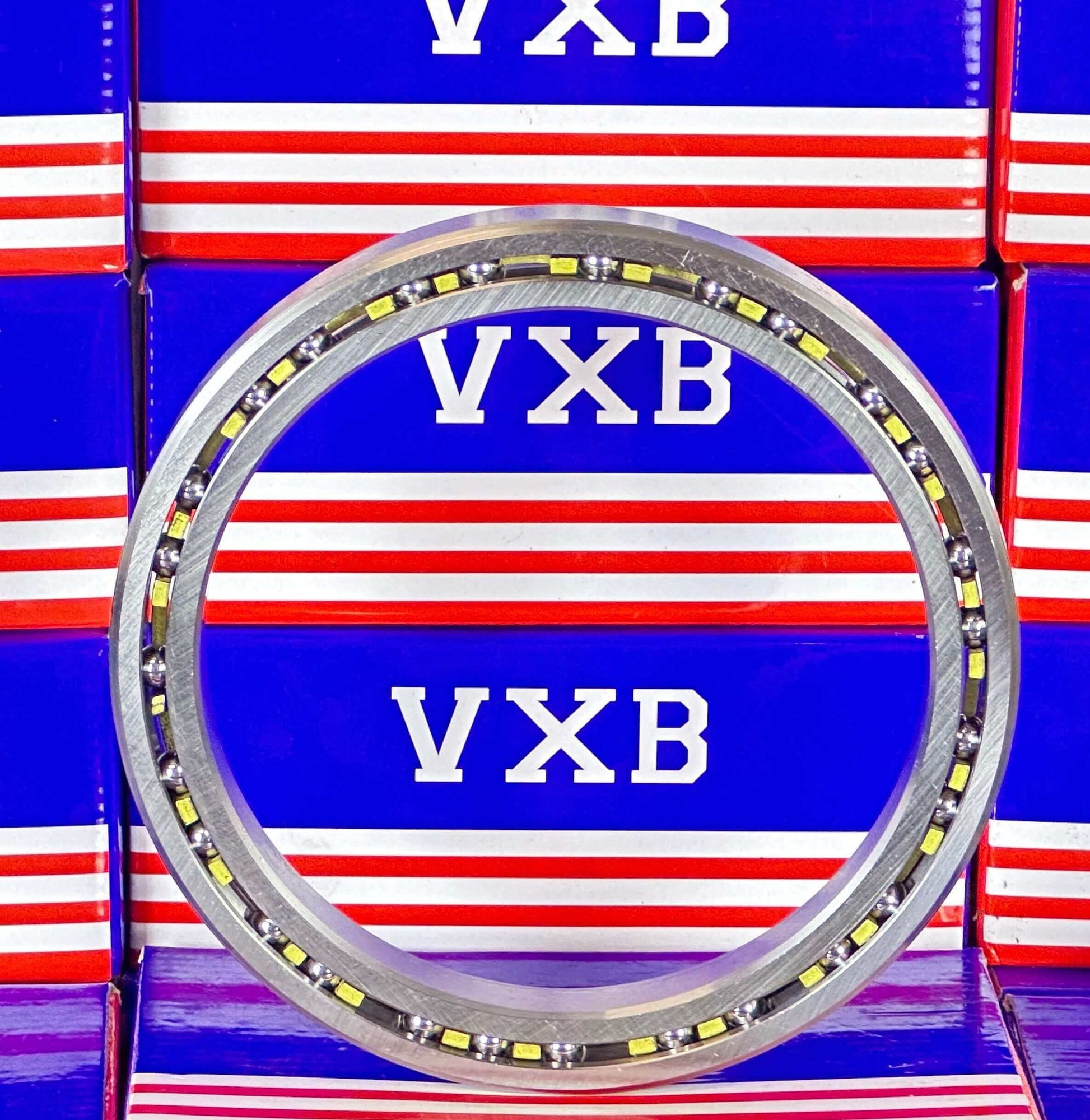

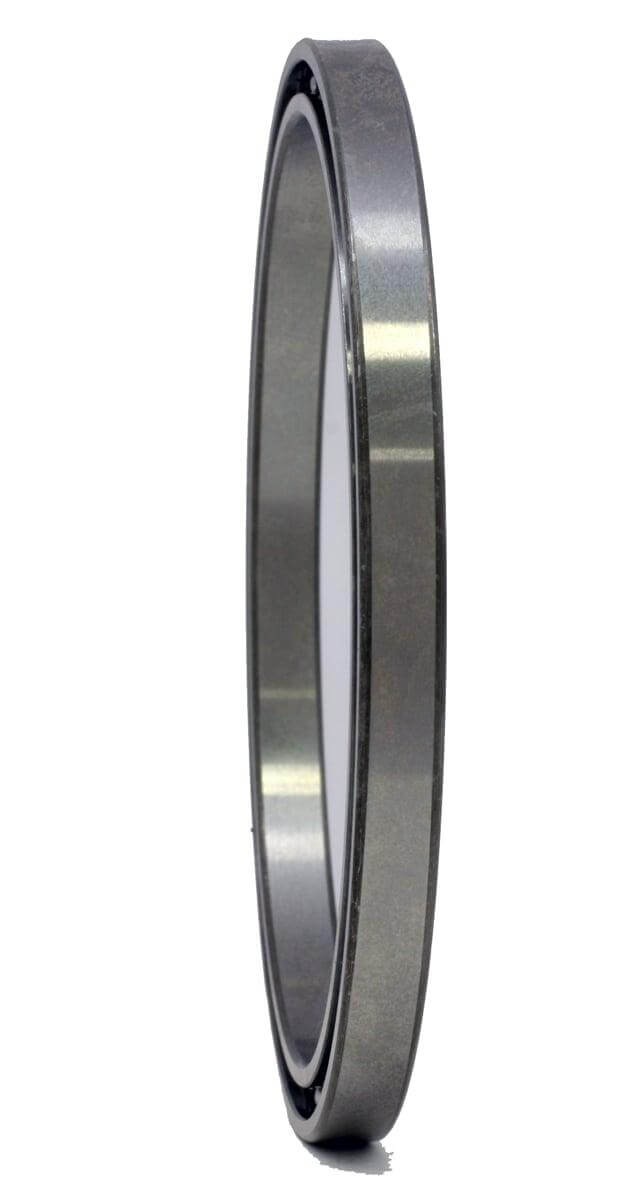

KD040XP0 Thin Section Bearing X Four-Point Contact Slim Bearing ID 4" OD 5" Width 1/2"

KD040XP0 Slim Type Bearing - X-Type Four-Point Contact
✔️ 4" x 5" x 0.5" - Open, High Precision Inch Series

The KD040XP0 is a four-point contact slim bearing engineered for applications requiring simultaneous radial and axial load handling in both directions. With a 4" inner diameter and a compact 1/2" cross-section, it offers rigidity and versatility in tight spaces. This open-design bearing is perfect for robotics, rotary tables, and precision mechanisms where space-saving, multi-directional load capacity is essential.

✅ Size: 4" ID x 5" OD x 0.5" width
✅ Type: X-Type four-point contact slim bearing
✅ Series: Inch-based thin section (KD040)
✅ Cross-section: 1/2"
✅ Material: Chrome steel
✅ Enclosure: Open (dry, non-sealed)
✅ Dynamic load rating: 6.588 kN
✅ Static load rating: 15.826 kN
✅ Quantity: 1 bearing
✅ Brand: VXB

💡 Why use a four-point contact slim bearing?
X-type bearings handle radial, thrust, and moment loads with a single row of balls - saving weight and space while maximizing performance. They’re ideal for rotating systems with space constraints and varying load angles.

Designed for precision in compact rotating assemblies with dynamic, multi-directional forces.

🔍 Comparison Table: KD040XP0 vs. VD040XP0
