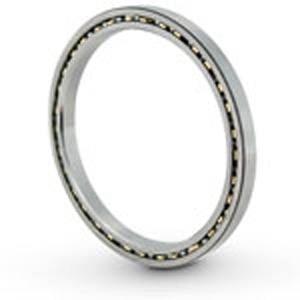

KA060XPO Thin Section Bearing ID 6" OD 6-1/2" Width 1/4"
KA060XPO Thin Section Bearing ID 6" OD 6-1/2" Width 1/4"
Couldn't load pickup availability
KA060XPO Slim Type Bearing - X-Type, Four-Point Contact
✔️ 6" x 6.5" x 0.25" - Open Bearing with Brass Cage, Thin Section
The KA060XPO is a four-point contact (X-type) slim-section bearing built to handle radial, axial, and moment loads simultaneously. Its 1/4" cross-section, open design, and brass cage make it an ideal choice for systems requiring high performance in tight spaces - like rotary platforms, robotics, or aerospace mechanisms.
✅ Size: 6" ID x 6.5" OD x 0.25" width
✅ Type: Four-point contact (X-type) bearing
✅ Cross Section: 1/4"
✅ Material: Chrome steel
✅ Cage: Brass
✅ Enclosure: Open
✅ Dynamic Load Rating: 2.945 kN
✅ Static Load Rating: 9.764 kN
✅ Quantity: 1 bearing
✅ Brand: VXB
💡 Why choose an X-type slim bearing?
X-type (four-point) bearings combine the capabilities of radial and thrust bearings in one unit - saving space and simplifying design in dynamic load environments.
Excellent for complex systems where load directions vary or combine.
🔍 Comparison Table: KA060XPO vs. KA060CP0 vs. KB060CP0
| Feature | KA060XPO (X-Type) | KA060CP0 (C-Type) | KB060CP0 (B-Type) |
|---|---|---|---|
| Inner Diameter | 6" | 6" | 6" |
| Outer Diameter | 6.5" | 6.5" | 6.625" |
| Width | 0.25" | 0.25" | 0.3125" (5/16") |
| Contact Style | Four-point contact | Deep groove (radial) | Angular contact (axial, one-way) |
| Load Direction Support | Radial + axial + moment | Primarily radial | Primarily axial (one direction) |
| Dynamic Load Rating | 2.945 kN | 4.702 kN | 3.668 kN |
| Static Load Rating | 9.764 kN | 15.421 kN | 12.259 kN |
| Enclosure | Open | Open | Open |
| Cage Material | Brass | Brass | Brass |
| Best Use | Multi-load compact designs | High radial loads | Axial-heavy, higher OD fitment |
🔧 Which should you choose?
