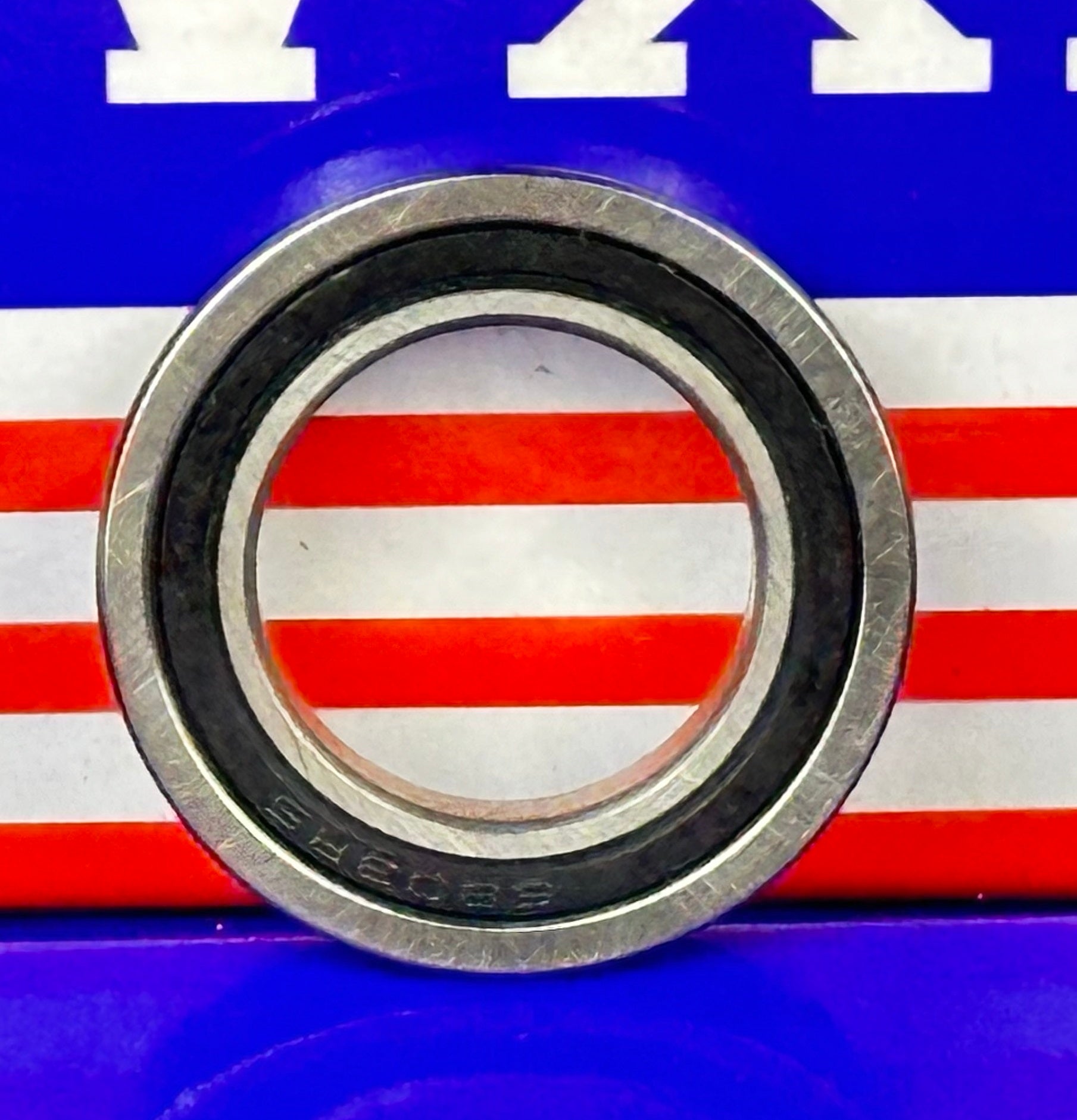

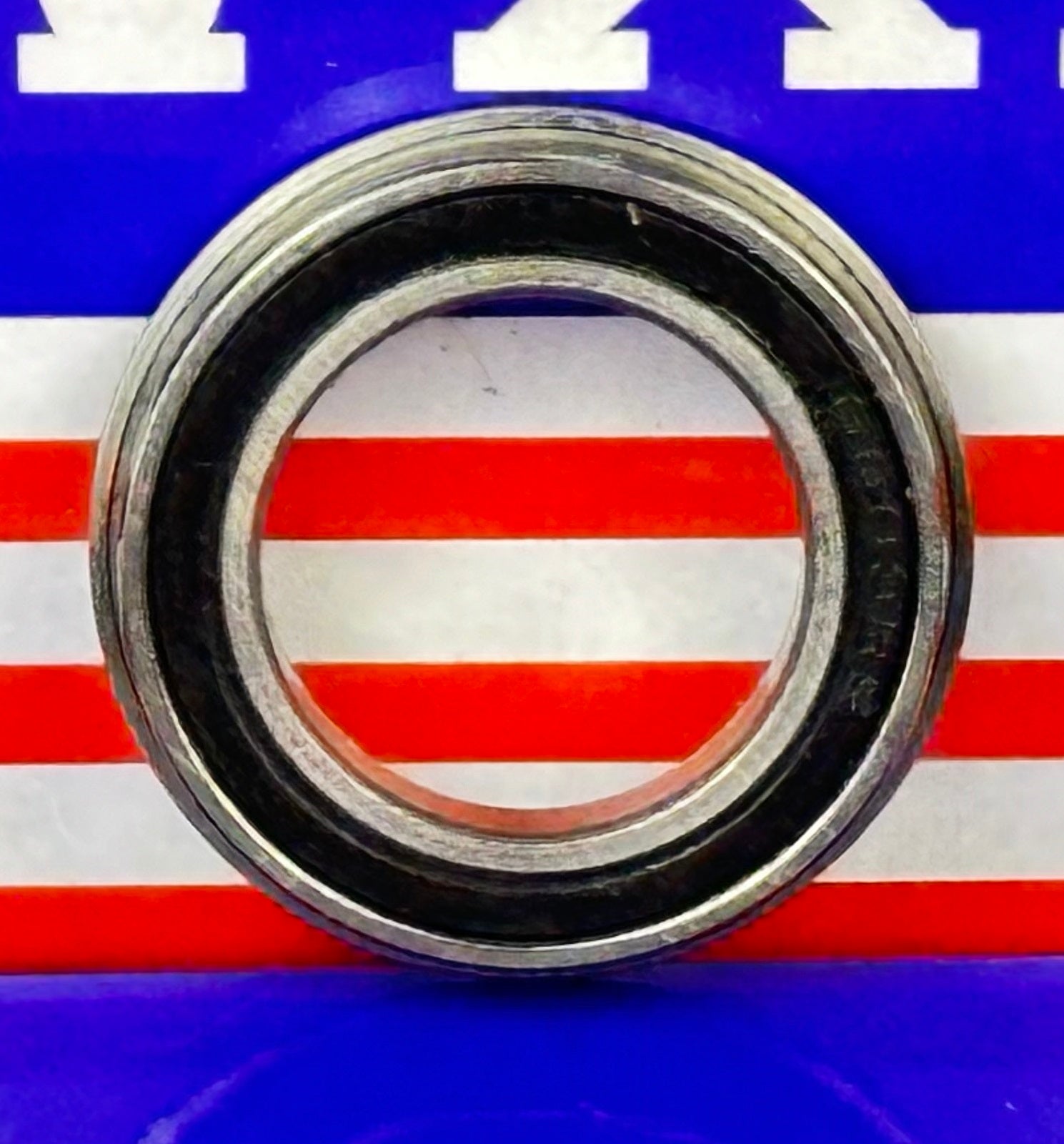

F6803-2RS Flanged Sealed Ball Bearing ID 17mm x OD 26mm x 5mm

F6803-2RS Flanged Ball Bearing - Sealed, EMQ Rated
✔️ 17mm x 26mm x 5mm - Rubber Sealed, Chrome Steel, Flanged

The F6803-2RS is a flanged deep groove ball bearing built for smooth, high-speed operation in compact assemblies. Designed with electric motor quality (EMQ) standards, this bearing features a steel cage, chrome steel balls, and durable rubber seals for maximum protection against contaminants. Its built-in flange makes mounting easier and more secure, while the slim 5mm profile suits space-sensitive designs.

✅ Size: 17mm ID x 26mm OD x 5mm width
✅ Type: Flanged deep groove radial bearing
✅ Material: Chrome steel
✅ Balls: Chrome steel
✅ Cage: Steel
✅ Seals: Double rubber seals (2RS)
✅ Radial Clearance: C0 (standard)
✅ Quality: EMQ (Electric Motor Quality)
✅ Lubrication: Pre-lubricated with grease
✅ Dynamic Load Rating: 2,630 N
✅ Static Load Rating: 1,570 N
✅ Max Speed (Grease): 15,000 RPM
✅ Quantity: 1 bearing
