VXB
6900-2RS Full Ceramic Bearing 10x22x6mm Si3N4/PTFE
6900-2RS Full Ceramic Bearing 10x22x6mm Si3N4/PTFE
Couldn't load pickup availability

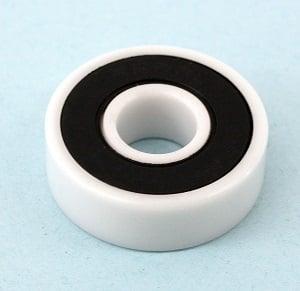

6900-2RS Full Ceramic Ball Bearing - Si₃N₄
✔️ 10mm x 22mm x 6mm - Silicon Nitride, PTFE Cage, Sealed
The 6900-2RS full ceramic bearing is built entirely from Si₃N₄ (silicon nitride), offering exceptional thermal stability, chemical resistance, and low friction - making it ideal for harsh, clean, or corrosive environments. Fitted with PTFE cage and dual rubber seals, this bearing is non-magnetic, non-conductive, and pre-lubricated for long-lasting, zero-maintenance operation.
✅ Size: 10mm ID x 22mm OD x 6mm width
✅ Type: Full ceramic deep groove bearing
✅ Material: Silicon nitride (Si₃N₄)
✅ Cage: PTFE (Polytetrafluoroethylene)
✅ Closures: Double rubber seals (2RS)
✅ Lubrication: Dry or minimal grease (non-conductive)
✅ Non-magnetic and corrosion-resistant
✅ Quantity: 1 bearing
✅ Brand: VXB
💡 Why choose a full ceramic bearing?
Full ceramic bearings are ideal for extreme environments - resistant to corrosion, heat, and electrical conductivity - perfect for high-tech, chemical, or underwater applications.
Excellent for cleanrooms, food processing, semiconductors, or high-speed spindles where steel and plastic won't hold up.
🔍 Comparison Table: 6900-2RS Full Ceramic vs. POM Plastic vs. Steel
Feature | 6900-2RS Full Ceramic | POM 6900-2RS (Plastic) | 6900-2RS (Steel) |
---|---|---|---|
Inner Diameter | 10mm | 10mm | 10mm |
Outer Diameter | 22mm | 22mm | 22mm |
Width | 6mm | 6mm | 6mm |
Ball Material | Si₃N₄ Ceramic | SS316 Stainless Steel | Chrome/SS Steel |
Cage Material | PTFE | POM (Acetal) | Steel |
Sealing | Rubber sealed (2RS) | Rubber sealed (2RS) | Rubber sealed (2RS) |
Temperature Tolerance | Very high (~1000°C dry) | Moderate (~100°C) | Good (~120-150°C) |
Corrosion Resistance | Excellent | High | Moderate to high |
Electrical Conductivity | Non-conductive | Non-conductive | Conductive |
Weight | Lightest | Light | Heaviest |
Best Use | Harsh/clean/chemical systems | Food-grade, wet environments | General mechanical applications |
🔧 Verdict:
-
Go with Full Ceramic for demanding, non-conductive, or corrosive environments.
-
Use POM Plastic when food-grade, chemical resistance, or moisture tolerance is needed with a budget-friendly material.
-
Choose Steel when cost, strength, and all-purpose performance are your main concerns.
