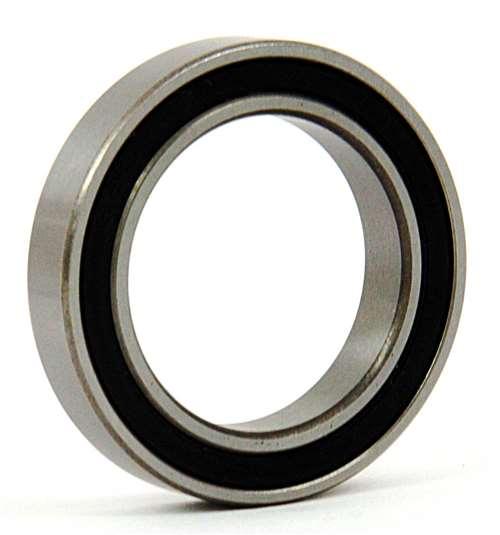

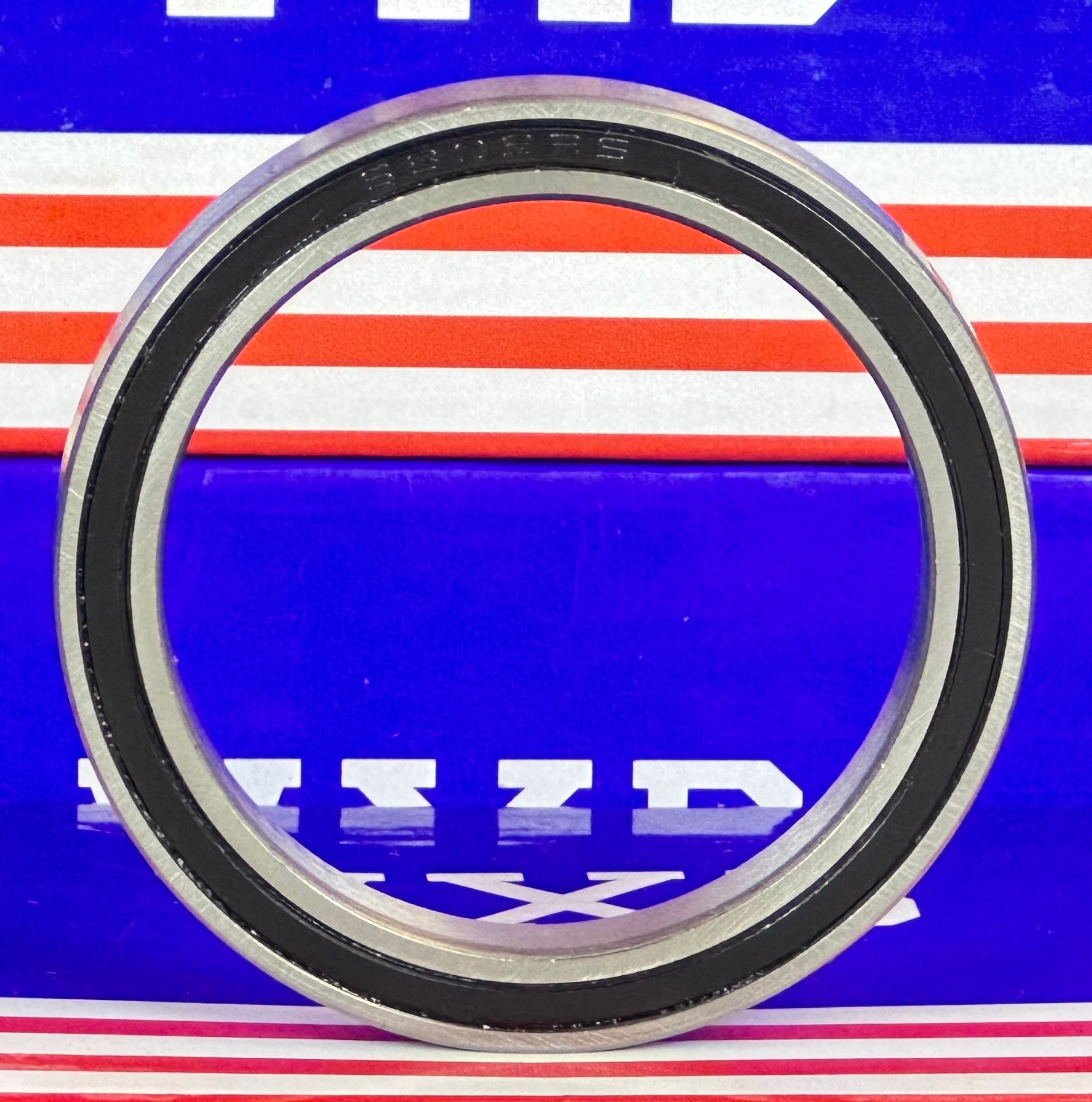

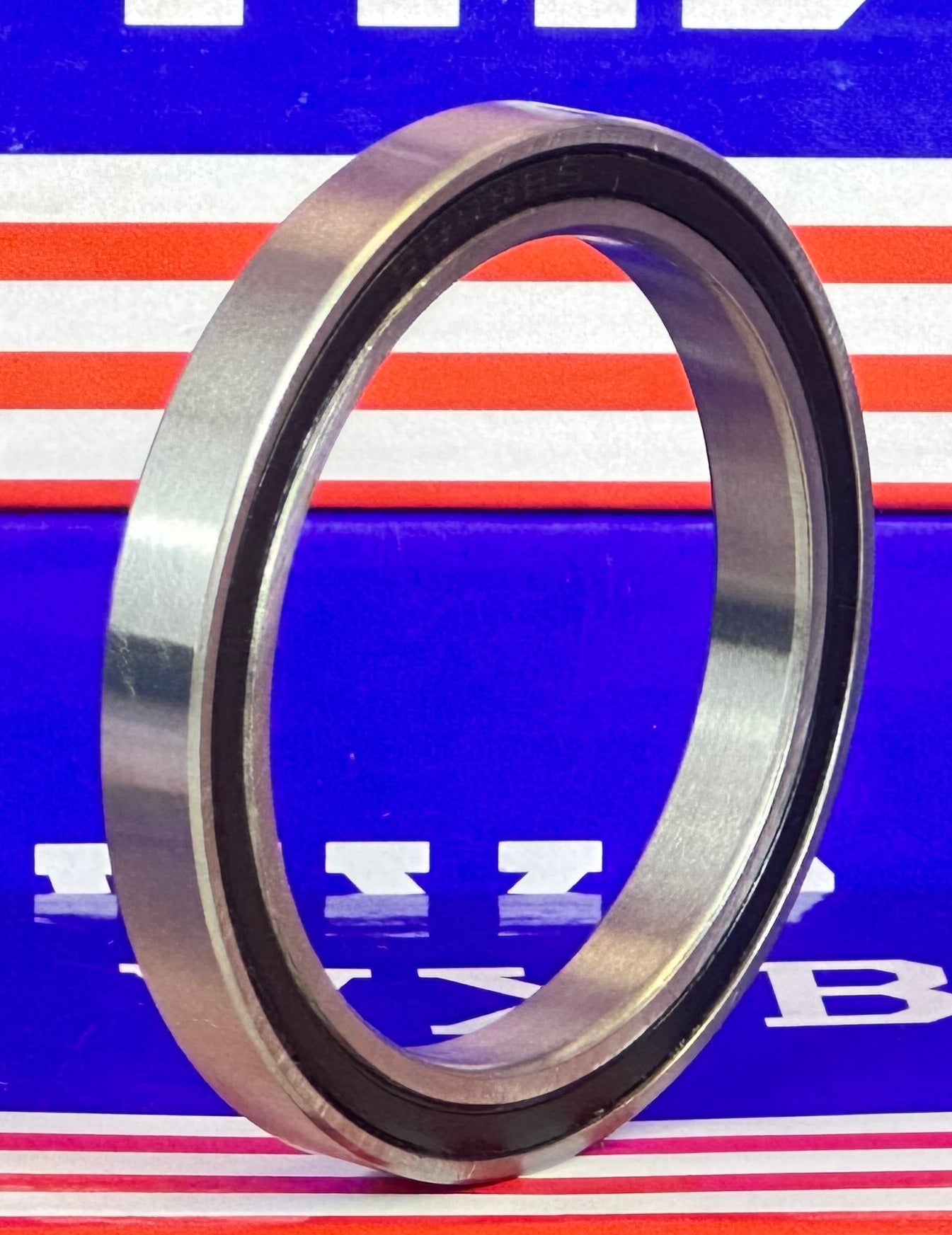

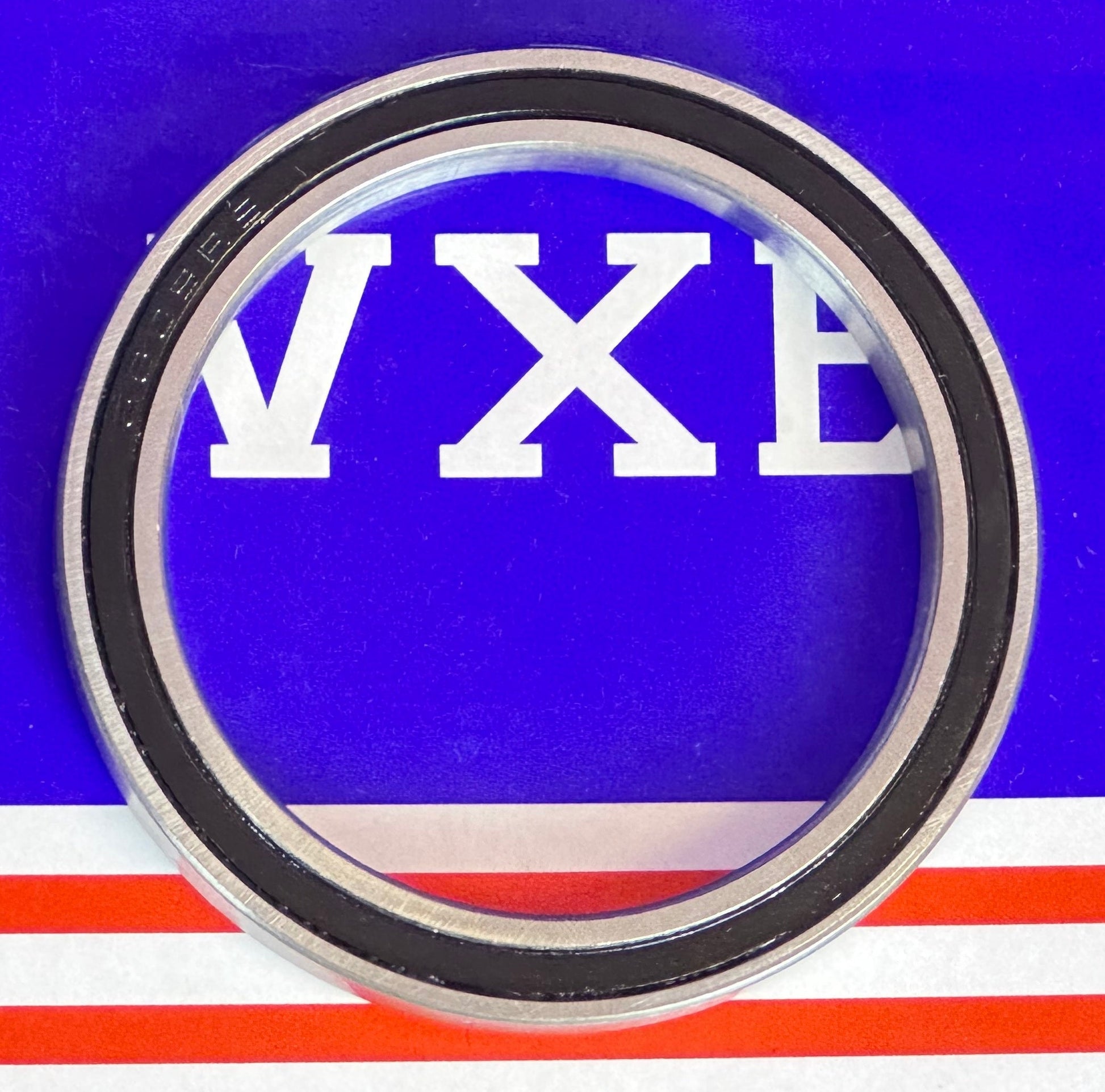

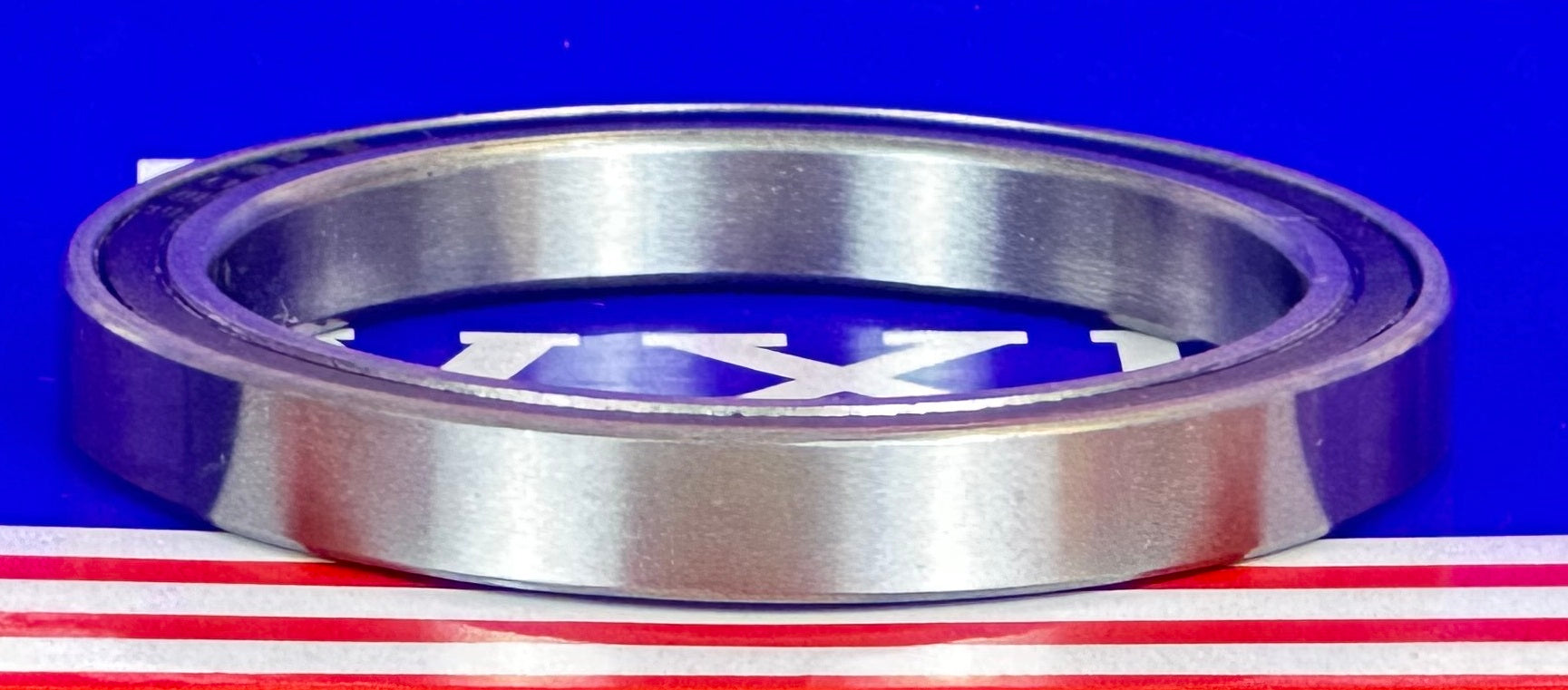

6809-2RS Ball Bearing 45x58x7mm - Sealed

6809-2RS Sealed Ball Bearing
✔️ 45mm ID × 58mm OD × 7mm Wide - EMQ - Chrome Steel

The 6809-2RS is a slim-section, deep groove ball bearing with rubber seals on both sides for protection and long-lasting performance. Built from chrome steel and pre-lubricated with grease, it’s ideal for tight-space applications in electric motors, robotics, and industrial equipment.

✅ Inner diameter: 45mm
✅ Outer diameter: 58mm
✅ Width: 7mm
✅ Material: Chrome steel
✅ Cage: Steel
✅ Seals: Double rubber seals (2RS)
✅ Clearance: C0 (standard)
✅ Lubrication: Greased, self-lubricated
✅ Dynamic load rating (Cr): 5,350 N
✅ Static load rating (Cor): 4,900 N
✅ Max speed (grease): 6,000 RPM
✅ Quality: EMQ (Electric Motor Quality)
✅ Pack size: 1 bearing

Dimensions Table:

Equivalent to:
✅ 61809-2RS1
✅ 6809RS
