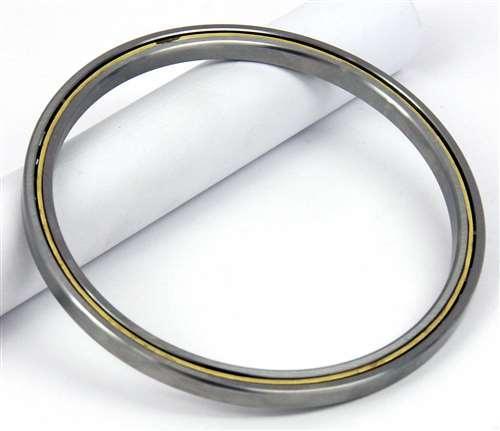

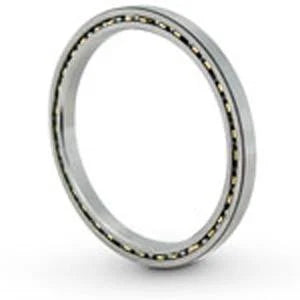

3" x 3-5/8" x 5/16" Thin Section Ball Bearing VB030CP0

VB030CP0 Thin Section Ball Bearing - 3" x 3 5/8" x 5/16" - Chrome Steel, ABEC 1, Open Type

The VB030CP0 is a thin section deep groove ball bearing designed for space-critical applications requiring smooth rotation, minimal weight, and high precision. With a 3" inner diameter, 3 5/8" outer diameter, and a 5/16" cross-section, this bearing offers a compact solution for robotics, automation, medical devices, and aerospace assemblies.

Crafted from chrome steel with a brass cage and an open design, this bearing runs with low friction and high efficiency, and is preserved with oil for protection during storage. It’s rated ABEC 1 for general precision use.

🔧 Product Specifications:

• ✅ Model: VB030CP0

• ✅ Type: Thin Section Deep Groove Radial Ball Bearing

• ✅ Quality: ABEC 1

• ✅ Material: Chrome Steel

• ✅ Cage: Brass

• ✅ Closures: Open (no seals)

• ✅ Lubrication: Oil Preservative

• ✅ Inner Diameter (ID): 3"

• ✅ Outer Diameter (OD): 3 5/8" (3.625")

• ✅ Width / Cross Section: 5/16" (0.313")

• ✅ Dynamic Load Rating: 2,713 N

• ✅ Static Load Rating: 6,908 N

• ✅ Quantity: 1 Bearing

• ✅ Equivalent Models: KB030CP0, SB030CP0, KB030CPO, SB030CPO
