NNF5010ADA-2LSV Sheave Bearing 2-Row Full Complement Bearing

NNF5010ADA-2LSV Sheave Bearing. NNF5010ADA-2LSV is a double row full Complement cylindrical roller bearing. Bearing has the highest dynamic and static load ratings, bearing has Superior sealing capability and it has unique design rubber contact seal prevents dust & water invasion, NNF5010ADA-2LSV lubricates with a lithium soap-based grease containing an EP additive, NNF5010ADA-2LSV lubricates through lubrication hole & grooves only in inner ring.

• NNF5010ADA-2LSV Sheave Bearing
• Brand: VXB
• Double Row Full Complement Cylindrical Roller Sheave Bearing

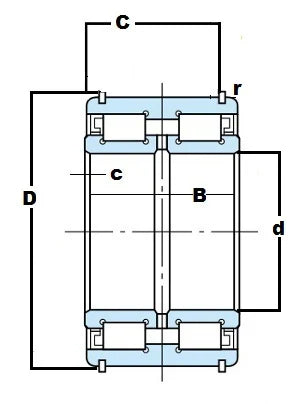

• Dimensions: 50mmx80mmx40mm/Metric
• ID (inner diameter)/Bore: 50mm
• OD (outer diameter): 80mm
• Width: 40mm
• Size: 50 x 80 x 40mm
• Snap Ring: WRE 80(not included)
• Quantity: 1 Bearing
• Dynamic load rating Cr: 99,500 N
• Static load rating Cor: 158,000 N
• Limiting Speed:
  • Grease Lubrication: 2,000 RPM
• Operating temperature: Suitable for -30 to +120 Celsius
• Application: Highly suitable in rope sheave
