7308B Bearing Angular contact 7308B

7308B Angular Contact Ball Bearing - Single Row

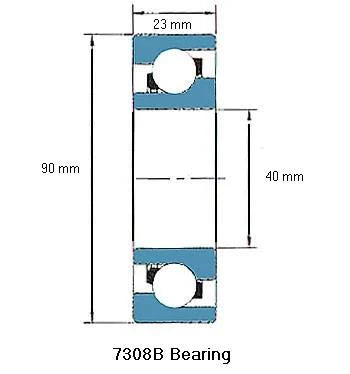

✔️ 40mm x 90mm x 23mm - High Load Capacity for Combined Forces

The 7308B is a single-row angular contact ball bearing built to handle combined radial and axial loads. With a 40mm bore and 90mm outer diameter, it's ideal for high-speed spindles, gearboxes, pumps, and machine tool assemblies. Its 23mm width and precise construction offer stability under thrust in one direction.

✅ Type: Angular contact ball bearing
✅ Size: 40mm x 90mm x 23mm
✅ Inner diameter: 40mm
✅ Outer diameter: 90mm
✅ Width: 23mm
✅ Radial clearance: 1-11μm
✅ Inner ring tolerance: 0 ~ -15μm
✅ Outer ring tolerance: 0 ~ -18μm
✅ Dynamic load rating (Cr): 46.2 kN
✅ Static load rating (Cor): 30.5 kN
✅ Max speed (grease): 9,000 RPM
✅ Quantity: 1 bearing
✅ Brand: VXB

✅ Equivalent to:

• FAG 7308B, 7308B-TVP, QJ308

• NSK 7308A, 7308B, 7308C

• NTN 7308, 7308B, 7308C, QJ308

• MRC 308R, 7308, 7308P, 9308U

• Fafnir 2MM308WI-CR, 7308W, 7308PW

• Barden 2308H, 308H

• New Departure 0308, 30308, Q20308, H20308

• Norma-Hoffmann 340AC, M40
