6800-2RS Ball Bearing 6800RS

6800-2RS Sealed Slim Ball Bearing - VXB Brand

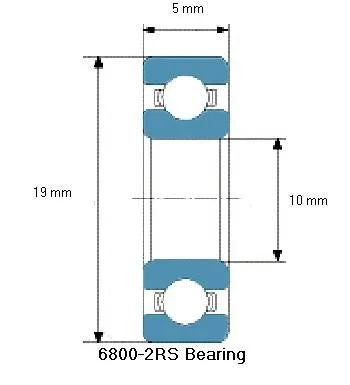

✔️ 10mm ID - 19mm OD - 5mm Wide - Rubber Sealed

The 6800-2RS is a precision single-row deep groove ball bearing with a slim 5mm width, making it ideal for compact and high-speed applications. With double rubber seals and pre-packed grease, it offers quiet operation, strong sealing, and low friction - perfect for motors, robotics, cycling, and compact mechanical systems.

✅ Type: Single-row deep groove ball bearing
✅ Inner diameter (bore): 10mm
✅ Outer diameter: 19mm
✅ Width: 5mm
✅ Seals: Rubber seals on both sides (2RS)
✅ Lubrication: Grease-filled (self-lubricated)
✅ Clearance: 09µm
✅ Inner ring tolerance: 0-8µm
✅ Outer ring tolerance: 0~-11µm
✅ Dynamic load rating (Cr): 1.38 kN
✅ Static load rating (Cor): 0.585 kN
✅ Max speed (grease): 22,000 RPM
✅ Quantity: 1 bearing
✅ Brand: VXB

Cross Reference Equivalents:
61800-2RS1, Koyo 6800-2RS, Nachi 6800-2NSL, NTN 6800LLU, FAG 6800-2RS, NSK 6800DD
