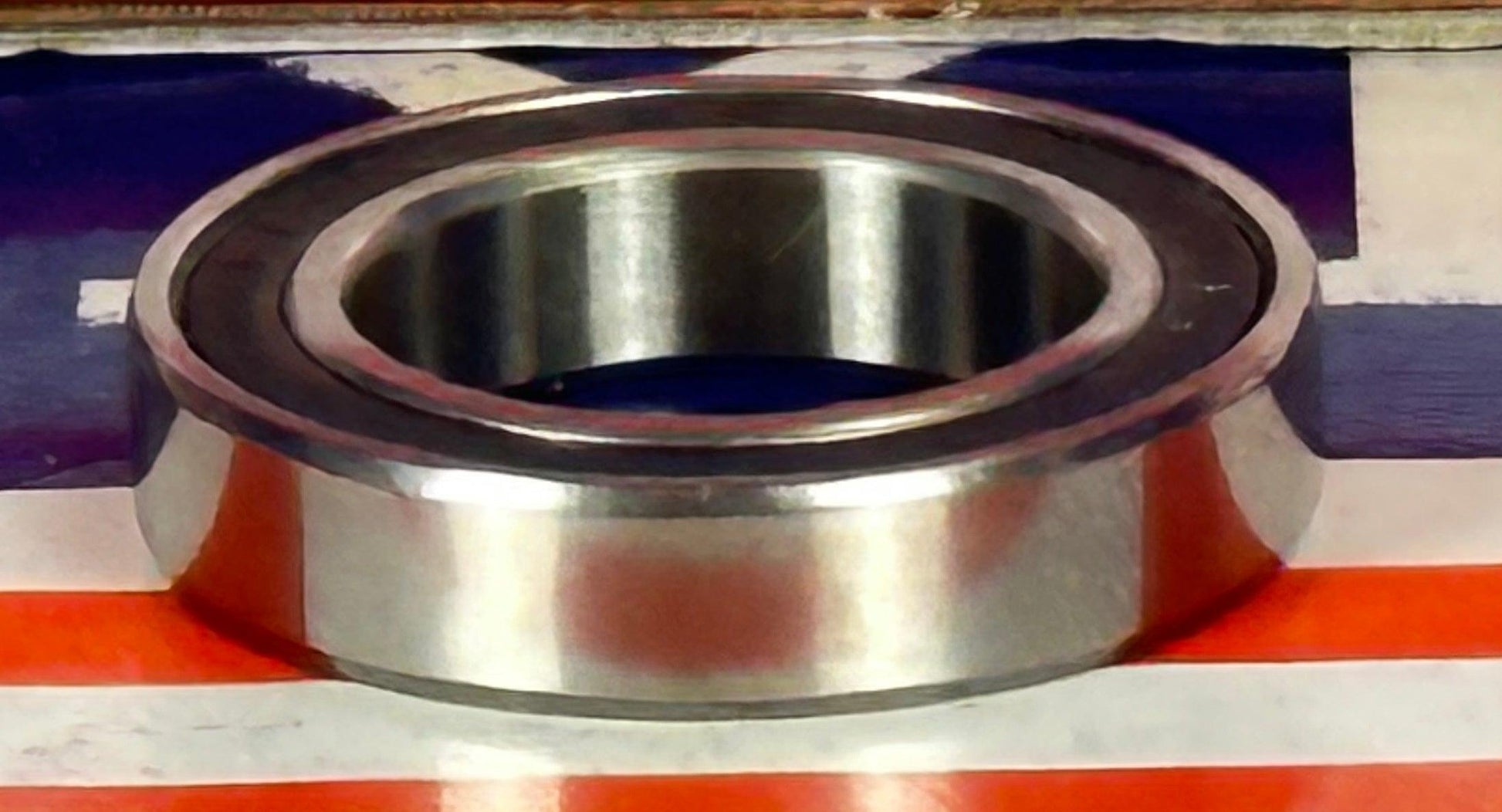

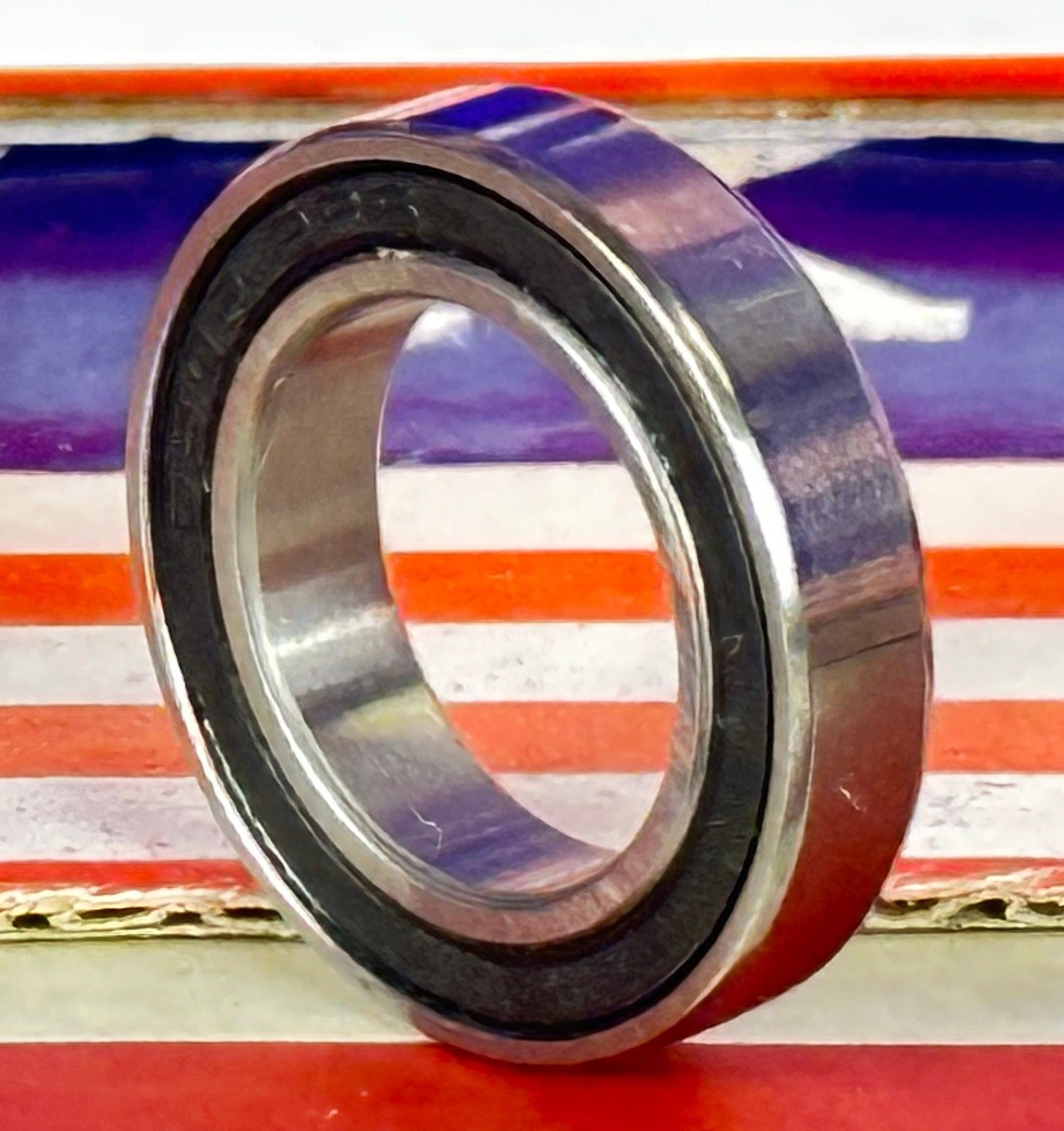

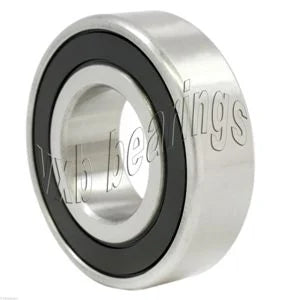

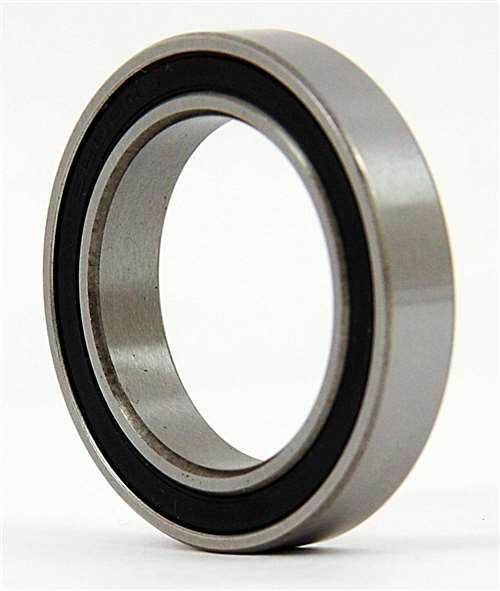

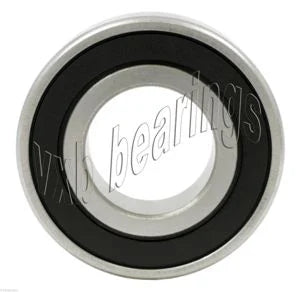

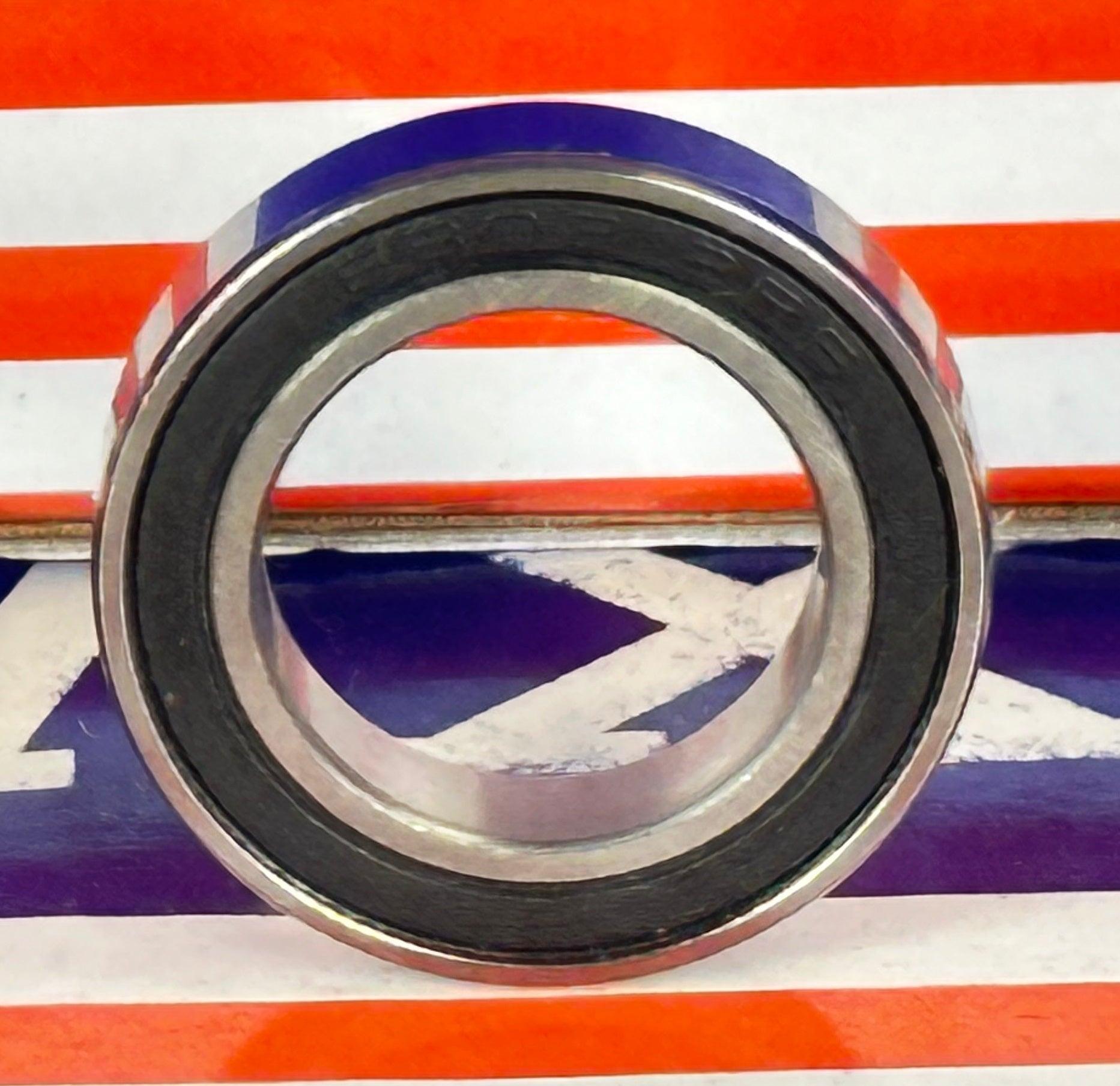

6802LLU Bearing is double sealed, radial and deep groove ball bearing, 6802LLU bearing is made from Chrome Steel with chrome steel balls and steel cage, bearing is closed with rubber seals to protect the bearing from dust or any possible contamination, 6802LLU bearing is sealed and self lubricated with grease.
- 6802LLU ball bearing
- Deep groove radial ball bearing
- Closures: Double sealed with rubber seals RS/RS1/2RS1
- Quality: Electric motor quality
- Material: Chrome Steel
- Cage: Steel
- Balls: Chrome Steel
- Lubrication: Pre-lubricated with grease Bearing
- Radial Clearance: C0
- Dimensions: 15mm x 24mm x 5mm/Metric
- ID (inner diameter)/Bore: 15mm
- OD (outer diameter): 24mm
- Width: 5mm
- Size: 15 x 24 x 5 mm
- Quantity: 1 Bearing
- Dynamic load rating Cr: 2,080 N
- Static load rating Cor: 1,260 N
-
Limiting Speed:
- Grease Lubrication: 17,000 RPM
- Equal: 6802-2RS & 6802-2RZ
- Equivalents: 61802-2RS1 and 6802RS Bearing
|
